PRECISION POSITIONING

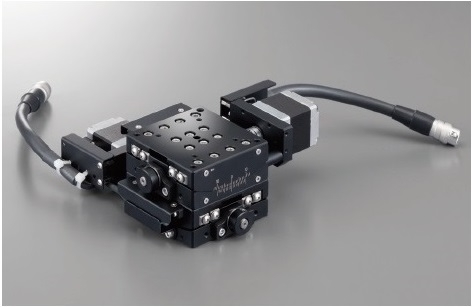

  • Goniometer Stage

    TravelrangeUpperaxis[±°]: 6
    TravelrangeLoweraxis[±°]: 5
    Tablesize[mm]: 60×60
    Travelmechanism:Upperaxis Worm gear(1/292)
    Travelmechanism:Loweraxis Worm gear(1/360)
    Guide: Cross roller guide
    Mainmaterial: Aluminum
    Finishing: Black almite finishing
    Heightofstage[mm]: 50±0.4
    Heightofcenterrotation[mm]: 100±0.4
    Resolution:Upperatthefull(pulse)[°]: 0.002466
    Resolution:Loweratthefull(pulse)[°]: 0.002
    MAXspeedupper[°/sec]: 12.5
    MAXspeedlower[°/sec]: 10
    Repeatabilitypositioningaccuracy[Within±°]: 0.005
    Loadcapacity[kgf]: 4.5
    Loadcapacity[N]: 44.1
    Momentstiffness:Pitch[''/N・cm]: 0.41
    Momentstiffness:Yaw[''/N・cm]: 0.2
    Momentstiffness:Roll[''/N・cm]: 0.41
    Lostmotion[Within°]: 0.01
    Limitsensor Installed
    Originsensor Installed
