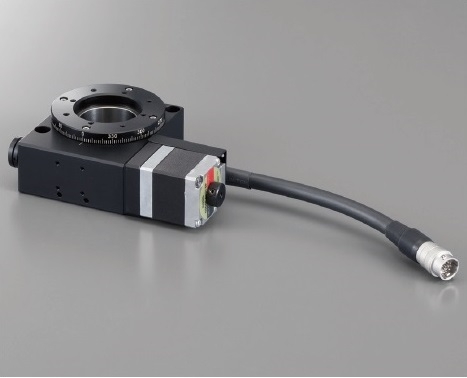

Rotary Stage

Travelrange[±°]: 360
Tablesize[φmm]: 59
Travelmechanism Worm gear(1/180)
Guide: Deep groove ball bearing
Mainmaterial :Aluminum
Finishing: Black almite finishing
Weight[kg]: 0.6
Resolution:Full(pulse)[°]: 0.004
Resolution:Half(pulse)[°]: 0.002
MAXspeed[°/sec]: 20
Uni-directionalpositioningaccuracy[Within°]: 0.05
Repeatabilitypositioningaccuracy[Within±°]: 0.01
Loadcapacity[kgf]: 3
Loadcapacity[N] :29.4
Momentstiffness[''/N・cm]: 0.84
Lostmotion[Within°]: 0.05
Backlash[Within°]: 0.05
Parallelism[Withinμm]: 50
Accentricity[Withinμm]: 5
Runout[Withinμm]: 30
Originsensor Installed
