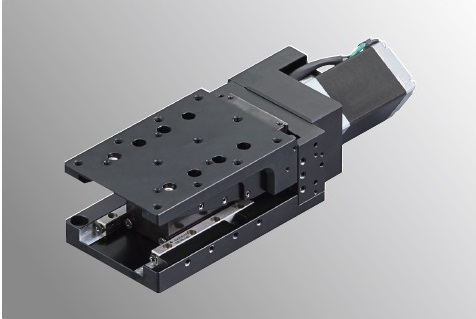

• Horizontal Z-Axis Stage

  Travelrange[mm] 4
  Tablesize[mm] 60×60
  Feedscrew φ8 lead 1
  Guide Wedge type crossed roller guide
  Mainmaterial Aluminum
  Finishing Black almite finishing
  Weight[kg] 1.14
  Resolution:Full(pulse)[μm] 0.5
  Resolution:Half(pulse)[μm] 0.25
  Resolution:Microstep1/20split(pulse)[μm] -
  MAX.speed[mm/sec] 2.5
  Uni-directionalpositioningaccuracy[Withinμm] 7
  Repeatabilitypositioningaccuracy[Within±μm] 0.5
  Loadcapacity[kgf] 7
  Loadcapacity[N] 68.6
  Momentstiffness:Pitch[''/N・cm] 0.2
  Momentstiffness:Yaw[''/N・cm] 0.04
  Momentstiffness:Roll[''/N・cm] 0.14
  Lostmotion[Withinμm] 1
  Backlash[Withinμm] -
  Straightness[Withinμm] -
  Parallelism[Withinμm] 50
  Motionparallelism[Withinμm] -
  Pitching[Within''] -
  Yawing[Within''] -
  Limitsensor Installed
  Originsensor Installed
