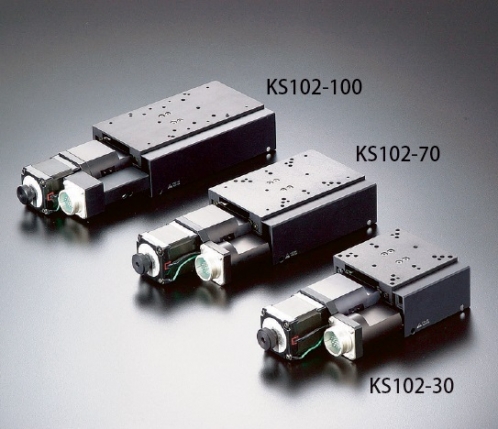

• X-Axis Motorized Stage

  Travelrange[mm]: 70
  Tablesize[mm]: 80×130
  Feedscrew: φ8 lead 1
  Guide: Crossed roller guide
  Mainmaterial: Aluminum
  Finishing: Black almite finishing
  Weight[kg]: 1.8
  Resolution:Full(pulse)[μm]: 1
  Resolution:Half(pulse)[μm]: 0.5
  Resolution:Microstep1/20split(pulse)[μm]: 0.05
  MAX.speed[mm/sec]: 10
  Uni-directionalpositioningaccuracy[Withinμm]: 5
  Repeatabilitypositioningaccuracy[Within±μm]: 0.3
  Loadcapacity[kgf]: 20
  Loadcapacity[N] 196
  Momentstiffness:Pitch[''/N・cm]: 0.01
  Momentstiffness:Yaw[''/N・cm]: 0.014
  Momentstiffness:Roll[''/N・cm]: 0.01
  Lostmotion[Withinμm]: 1
  Backlash[Withinμm]: 0.5
  Parallelism[Withinμm]: 0.5
  Motionparallelism[Withinμm]: 15
  Pitching[Within'']: 25
  Yawing[Within'']; 20
  Limitsensor Installed
  Originsensor Installed
  Slitoriginsensor Installed


Detail

Travelrange[mm]: 70
Tablesize[mm]: 80×130
Feedscrew: φ8 lead 1
Guide: Crossed roller guide
Mainmaterial: Aluminum
Finishing: Black almite finishing
Weight[kg]: 1.8
Resolution:Full(pulse)[μm]: 1
Resolution:Half(pulse)[μm]: 0.5
Resolution:Microstep1/20split(pulse)[μm]: 0.05
MAX.speed[mm/sec]: 10
Uni-directionalpositioningaccuracy[Withinμm]: 5
Repeatabilitypositioningaccuracy[Within±μm]: 0.3
Loadcapacity[kgf]: 20
Loadcapacity[N] 196
Momentstiffness:Pitch[''/N・cm]: 0.01
Momentstiffness:Yaw[''/N・cm]: 0.014
Momentstiffness:Roll[''/N・cm]: 0.01
Lostmotion[Withinμm]: 1
Backlash[Withinμm]: 0.5
Parallelism[Withinμm]: 0.5
Motionparallelism[Withinμm]: 15
Pitching[Within'']: 25
Yawing[Within'']; 20
Limitsensor Installed
Originsensor Installed
Slitoriginsensor Installed
